AIR ION COUNTER, INDUSTRIAL/MARINE

Highly Accurate Air Ion Counter MOC-320

  • measures low-density ions accurately

  • conforms to official standard

  • designed to minimize influence of ambient conditions

  • displays ion data in waveform on your PC












  Settings Manual

This precisely designed, capacitor detector provides highly accurate ion measurement.

It is designed to minimize impact of static electricity which can cause inaccurate measurement.

The MOC 320 provides accurate ion measurement in ranges down to 10 ions/cm3.

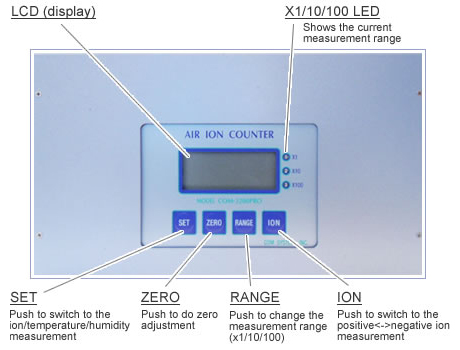

  • You can manually switch to the positive/negative ion measurement.

  • It conforms to the official standard for measurement method of airbone ion density which rigorously defines the methodology to measure ion density.


Ion Count


Temperature


Humidity


The MOC-320 ion counter:

  • measures a wide range of ion counts from 0-2,000,000 (pcs/cc) with high accuracy

  • runs on single phase 100-240VAC.

  • is easy to carry around.

  • weighs approx. 1.5kg.

  • runs on the rechargeable built-in battery.

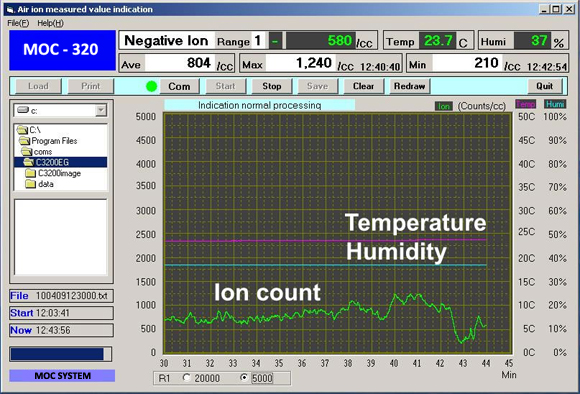

Specifically designed software



Using the specially designed software, which comes with the counter, you can save, open and print out files which contain the following data. It will help you to make a report. Great for making a report!

  • Ion waveforms

  • Maximum/Minimum/Average ion count

  • Date/Temperature/Humidity

  • * Interface: RS-232C (USB via conversion cable)
    * OS: Windows 98/Windows ME/Windows 2000/Windows XP/Windows Vista/Windows 7

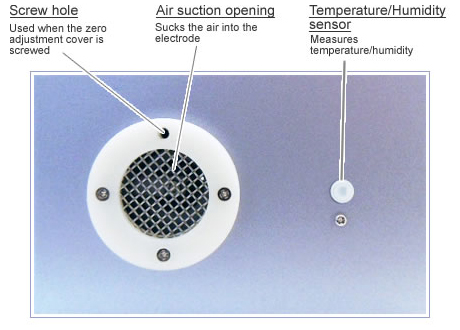

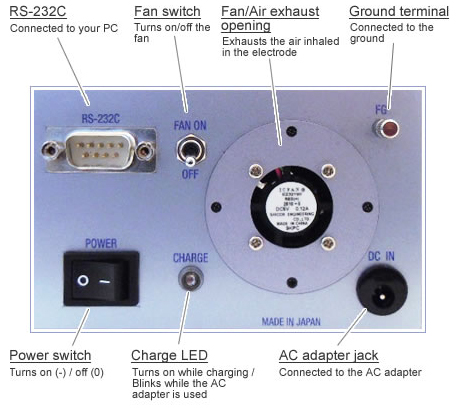

    You can turn off the air suction fan to save power and to prevent an unnecessary load. Fans built into air suction type air ion counters generally consume a lot of power.







    Specifications:

    Product name: Highly Accurate Air Ion Counter MOC -120.
    Detectable ion: Positive/Negative small air ions
    Measurement method: Ebert Gerdien capacitor method
    Detectable mobility: Ranges of small ions
    Dimensions: W110xH70xD188 (mm) (projections not included)
    Weight: Approx. 1.5kg
    Internal power supply: Nickel-Metal Hydride battery
    External power supply: AC adaptor 100-240VAC (50/60Hz) input, 12VDC output
    Battery charging time: approx. 4 hours
    Operation hours: approx. 8 hours when fully charged
    How to charge the battery: Turn off the ion counter and connect the AC adaptor. The charge indication LED turns on while charging and it turns off when the charging is completed.
    Measurement range of the built-in thermometer: 0-50C (32-122F) +/- 1%
    Measurement range of the built-in hygrometer: 5-100% +/- 5%
    Measurement range:

    • 0 - 2,000,000 (ions/cm3).

    • Range 1: R1 = 0 - 20,000 (ions/cm3)

    • Range 2: R2 = 0 - 200,000 (ions/cm3)

    • Range 3: R3 = 0 - 2,000,000 (ions/cm3)

    Minimum detectable ion density: 10 (ions/cm3)
    Display: Seven segments 4 + 1/2 figures STN display
    Operating temperature range: 5-35C (41-95F)
    Operating humidity range: 85% R.H. or below (no condensation)
    Storage temperature range: Room temperature
    Storage humidity range: Room humidity (no condensation)
    Interface: RS-232C (USB via conversion cable)
    Accessories:

    • 100-240VAC compatible AC adaptor

    • Cover of the air suction opening

    • Specially designed software

    • Instruction manual

    • Warranty card

    • Negative ion generator (Ionizer) "Air Tamer WX" for test operation
