OPERATOR TERMINAL - TOUCH SCREEN

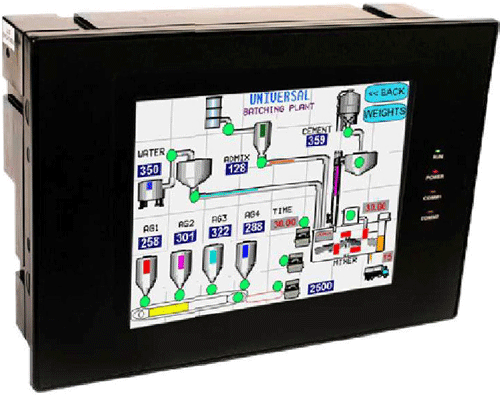

APM545 - 5.7" Color Touch Screen HMI





Analog Resistive Touch Screen Operator Interface featuring:

  • 5.7"QVGA (320 x 240 Pixels) Color (256 Colors) Touch Screen

  • Two universal serial ports to connect PLC / Printer / Programming Port

  • Multilanguage (Unicode) support with Windows® fonts

  • Direct connection to most controller families including Modbus RTU

  • Upto 65535 user definable screens (full size) or pop-up windows (partial size)

  • Real Time clock

  • Wizards for rapid application development of standard bitmapped objects

  • Real Time and Historical alarms

  • Real time and Historical trending

  • Data logging

  • Recipes support

  • Backlight screen saver

  • Windows® based programming software .........FREE!!

  • IP65 design, CE / UL certification

Specifications:


Power + 24V DC ±10%, 10W max. Immunity to ESD as per IE61000-4-2
Bezel IP65 rated Touch Screen Immunity to Fast Transients as per IE61000-4-4
Op. Temp. 0° to 50° C Immunity to Radiated electromagnetic field as per IE61000-4-3
Storage temp. -20° to 80° C Immunity to Conducted disturbances as per IE61000-4-6
Touch Screen Analog resistive type Surge as per IE61000-4-5
Humidity 10% to 90% (Non condensing) Radiated emission as per EN61000-6-4
Com. ports

Two serial ports. PLC port for connecting to a PLC. Second port for programming of APM, connecting to a serial printer, a third party device and another PLC or drive.

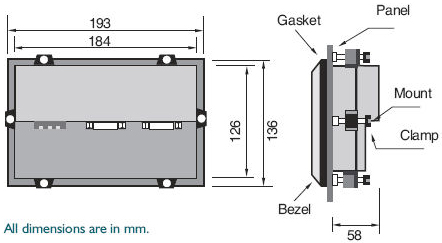

Dimensions

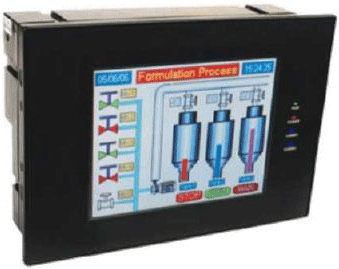

APM550



Analog Resistive Touch Screen Operator Interface featuring:

  • 5.7"QVGA (320 x 240 Pixels) Color (256 Colors) Touch Screen

  • Four Communication Ports:

    • Two universal serial ports to connect PLC / Printer / Programming Port

    • One Ethernet port to connect PLC / Programming Port / Remote Monotoring

    • One USB Port as Programming Port


  • Multilanguage (Unicode) support with Windows® fonts

  • Direct connection to most controller families including Modbus RTU

  • Up to 65535 user definable screens (full size) or pop-up windows (partial size)

  • Real Time clock and Date

  • Wizards for rapid application development of standard bitmapped objects

  • Real Time and Historical alarms

  • Real time and Historical trending

  • Recipes, Bar Graph support

  • Backlight screen saver

  • Windows® based programming software .........FREE!!

  • IP65 design, CE / UL certification



Specifications:

Power + 24V DC ±10%, 10W max. USB Port As programming port
Bezel IP65 rated Bezel STN Life 50000 Hrs
Op. Temp. 0° to 50° C CPU Speed 200 Mhz
Storage temp. -20° to 80° C Immunity to ESD as per IE61000-4-2
Touch Screen Analog resistive type Immunity to Fast Transients as per IE61000-4-4
Humidity 10% to 85% (Non condensing) Immunity to Radiated electromagnetic field as per IE61000-4-3
Com. ports

Two serial ports. PLC port for connecting to a PLC. Second port for programming of APM, connecting to a serial printer, a third party device and another PLC or drive.

Immunity to disturbances

Surge

Radiated emission

as per IE61000-4-6

as per IE61000-4-5

as per EN61000-6-4



Ethernet Port

For connecting to a PLC, programming of APM, a third party device, Drive or remote monitoring. (10 / 100 MBPS)

In-Rush Current 1 A

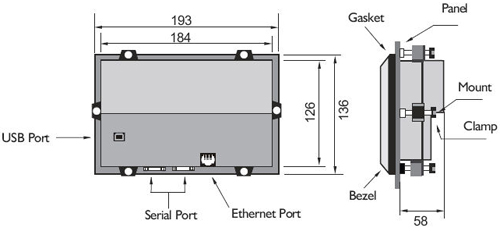

Dimensions
