TEMPERATUR - INDUSTRIAL/MARINE



Duct
The IDF sensor uses metal enclosure with stainless steel probes and is constructed for easy installation with any Building Automation System(BAS) or Industrial PLC.

Rugged steel enclosure with welded seems rated IP54 for harsh environments.

The IDF has all other features including stainless steel probe, external adjustable mounting bracket, terminal block, conduit opening for application in unconditioned environments where the unit may be subjected to dirt, condensation, oil vapor and other contaminants.

The platinum RTD comes in 100ohm and 1000ohm versions.

Option is available for 3 or 4-wire connection

Active outputs (0-10Vdc or 4-20mA) are also available as IDF 010 or IDF 420.

IDF

Datasheet


The UAS True Duct Averaging Sensor contains a PT100b element, which measures at every instantaneous point along the full length of the 10mm diameter copper tube and is suitable for use in the range -10 to +110 C.

Units contains Platinum sensing element.

Selectable outputs 0-10Vdc or 4-20mA of Active Duct Averaging Transmitter UATT

The UATT universal temperature transmitter combines four preset range selectable modes and customised output range scaling of Pt100B accuracy.

The sensors are housed in IP65 rated enclosures.


Immersion





Fast Response
The Immersion Temperature Sensor FTF is suitable for measurement of fluids in hydraulic systems with very fast-response controlled processes (e.g.domestic hot water systems).

The sensor is installed without immersion pocket.

To reduce the sensor response time, the end section of the probe is tapered.

The FTF can be used with all types of DDC/PLC controllers.



FTF







Datasheet

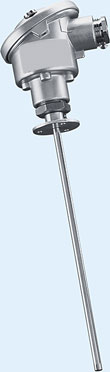

Flue
The TIHS and UIHT 142 is for use in high temperature applications up to 400 C.

The sensor consists of a stainless steel probe fitted to an aluminium head, and connected by a 1m cable to a plant housing where terminations and transmitters are located.

The TIHS UIHT is available in two standard probe lengths of 150mm or 250mm, for direct mounting into a SSP stainless steel pocket.

The UIHT 142 universal temperature transmitter combines four preset range selectable modes and customised output range scaling.


Selectable outputs 0-10Vdc or 4-20mA of Active Immersion Transmitter UIHT 142




TIHS

UIHT







Datasheet

Datasheet

CE-cert.

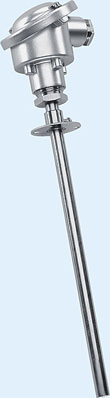

High Temperature Smoke Stack Sensor and Transmitter
The HTF and RGF is directly inserted to monitor the temperature of boiler stacks, steam lines and other applications where the temperature may rise above the operating range of standard sensors.

When used with the model RGF, 4-20mA or 0-10Vdc is provided that is linear from
-35-. . .+600C (-100. . .750C optional).
