TEMPERATURE - STANDARD, ROOM



Room (Passive)

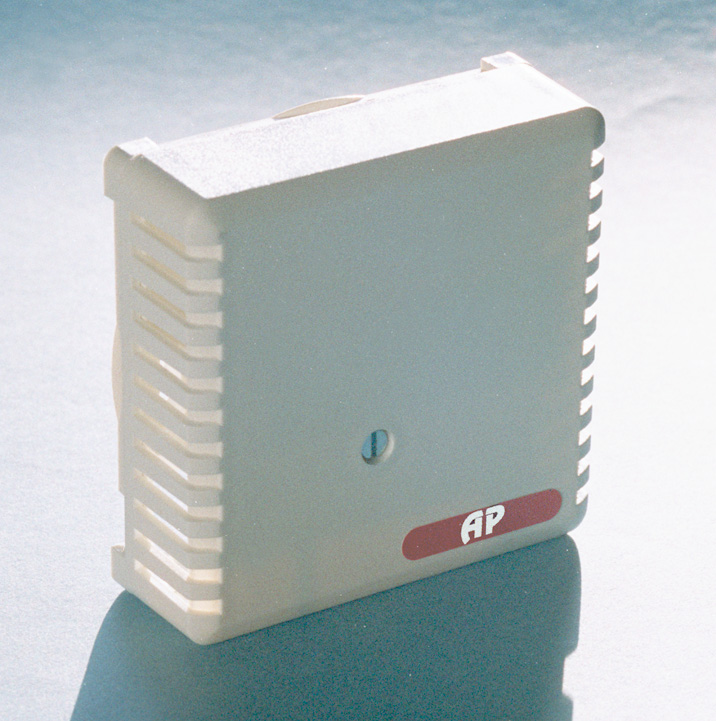

The TRD is a cost-effective room temperature sensor with an accuracy of 0,3 C or 0,5 C.

The thermistor is made of a very stable, pre-aged material that offers reliability needed in control systems.

The platinum RTD comes in 100 and 1000ohm and is compatible with most Building Management Systems.

The TRD is designed to be wall mounted indoors where appearance and accuracy are important.

The sensor may be mounted directly to the drywall or standard electrical boxes.



TRD











Datasheet


Room (Active)
The TRV/TRC is a fixed or desired programmable three wire 0-10Vdc/4-20mA transmitter designed to minimize self-heating for accurate room measurement.

The transmitter is available in three standard ranges and one to be set for any range between -40/+215C for temperature control and building automation.

The attractive white vented housing mounts easily and is constructed of ABS plastic.

Recording of minimum and maximum values for critical environments.

An averaging signal may be customized





TRV/TRC

TRV/TRC









CE-cert.

Datasheet








Features:

  • Low cost

  • High accuracy

  • Minimum and maximum value memory

  • Supervision of critical temperaures

  • Selectable averaging signal

Range Selection

  • 0 to + 50 C

  • -40 to +60 C

  • -35 to +35 C

Please specify required range
