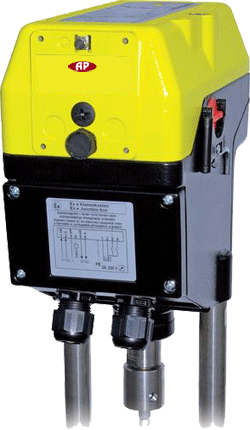

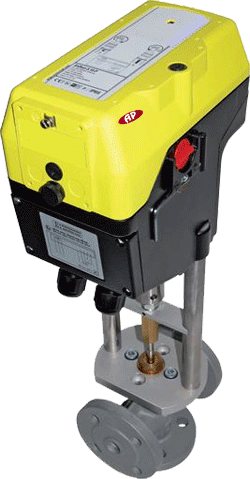

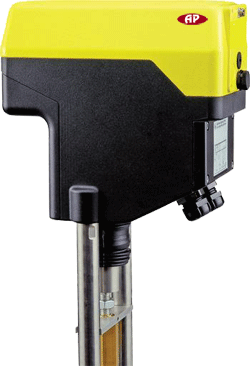

EXPLOSION-PROOF ATEX - DE LUXE




Valve actuators size S | 500-10.000 N














Technical data

 ExRun size S

Force*

 500-10.000 N

Power supply, self adaptable

 24-240 V ac/dc

Running time*

 2, 3, 4, 6, 9, 12, 15 sec. / mm

Spring return

 -

Control mode*

 On-off, 3-pos, 0-10 V DC, 4-20 mA

Feedback*

 0-10 V DC, 4-20 mA

Stroke

 5-60 mm, continuous mechanical limitation

Housing protection

 IP66

Ambient temperature

 -20°…+40°C (at T6) / -20°…+50°C (at T5)

Power supply

 over integrated terminal box

Weight

 500-5.000 N ca. 7 kg, 10.000 N ca. 7,5 kg

Explosion proof for all

 gases, mists, vapours, dust

Installation area

Zone 1, 2, 21, 22

Certification for gases

 II2G...

Certification for dust

 II2D...

*dependent on actuator type




Delivery – ExRun size S

  • 1 × Actuator with integrated terminal box

  • 1 × Allen key for manual override

Special models – ExRun size S

  • C5-M painted (Multilayer coating, resistant against corrosive
    and/or maritime atmosphere)

Accessories – ExRun size S

  • External, adaptable, on site adjustable switches

  • Ex-e terminal box, suitable for ..Run actuators with external switches

  • Mounting-bracket for ..Box-terminal box for direct mounting on valve actuators size S

  • Manual override with locking mechanism

  • Different adaptations for different valve types and sizes available
