EXPLOSION-PROOF ATEX - STANDARD

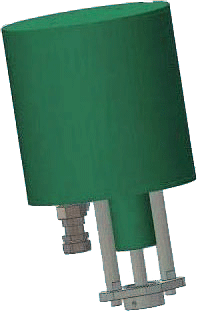

The EXNV actuators are used for seat valves up to 50 mm.






EXNV [800 N]




On/Off

AC/DC 24 V

Spindle down

EXNVFBM20D000 EXNVFBM20D001

Spindle up

EXNVFBM20D000 EXNVFBM20D001

Force (N)

800 800

Nominal stroke

20 20

Running time motor (s/mm)

7,5 7,5

Power consumption running (W)

5,50 5,5

Weight (kg)




Technical data:

Zone

1, 2

ATEX clasification

II 2 GD EEx d IIC T6

Working temperature

0° . . . 50°C

Auxiliary switches

2 x 3A(0.5A) max 250 Vca

Wiring

0.35 m halogen-free cable

Housing material

Aluminium basked varnish

Kapslingsgrad

IP54

On/off, 3, point Kontroll

1/2 wire

Modulating



  • Control

0 - 10Vdc

  • Working range: 0 - 100% stroke

2 - 10Vdc

  • Position feedback

2 - 10Vdc



On request:

  • Mounting bracket for several types of ball valves


Accessories:

  • EEx e  junction boxes


Data sheet under preparation





The EXNV actuators are used for seat valves up to 80 mm.






EXNV [1000 N]




On/Off

Modulating

AC/DC 24 V AC 100 - 240 V AC/DC 24V

Spindle down

EXNVOB
1230D000
  EXNVOB
1230D000
  EXNVOB
1230D000


Spindle up

EXNVOB
1230U000
  EXNVOB
1230U000
  EXNVOB
1230U000


Force (N)

1000 1000 1000 1000 1000 1000

Nominal stroke

20 20 20 20 20 20

Running time
motor (s/mm)

7,5 7,5 7,5 <7,5 7,5 7,5

Power consumption, running (W)

3 3 6 6 3 3

Weight (kg)

9 9 9 9 9 9


Technical data:

Zone

1, 2

ATEX clasification

II 2 GD EEx d IIC T6

Working temperature

0° . . . 50°C

Auxiliary switches

2 x 3A(0.5A) max 250 Vca

Wiring

0.35 m halogen-free cable

Housing material

Aluminium basked varnish

Protection class

IP54

On/off, 3, point Kontroll

1/2 wire

Modulating



  • Control

0 - 10Vdc

  • Working range: 0 - 100% stroke

2 - 10Vdc

  • Position feedback

2 - 10Vdc



On request:

  • Mounting bracket for several types of ball valves


Accessories:

  • EEx e  junction boxes


Data sheet under preparation



The EXNV actuators are used for seat valves up to 80 mm.






EXNV [2000 N]




On/Off

Modulating

AC/DC 24 V AC 100 - 240 V AC/DC 24V

Spindle down

EXNVAB
1230D000
  EXNVAB
1230D000
  EXNVAB
1230D000


Spindle up

EXNVAB
1230U000
  EXNVAB
1230U000
  EXNVAB
1230D000


Force (N)

1700 1700 1700 1700 1700 1700

Nominal stroke

50 50 50 50 50 50

Running time
motor (s/mm)

6 6 6 6 6 6

Power consumption, running (W)

4 4 4 4 4 4

Weight (kg)

9 9 9 9 9 9


Technical data:

Zone

1, 2

ATEX clasification

II 2 GD EEx d IIC T6

Working temperature

0° . . . 50°C

Auxiliary switches

2 x 3A(0.5A) max 250 Vca

Wiring

0.35 m halogen-free cable

Housing material

Aluminium basked varnish

Protection class

IP54

On/off, 3, point Kontroll

1/2 wire

Modulating



  • Control

0 - 10Vdc

  • Working range: 0 - 100% stroke

2 - 10Vdc

  • Position feedback

2 - 10Vdc



On request:

  • Mounting bracket for several types of ball valves



Accessories:

  • EEx e  junction boxes
