VALVE - STANDARD





Seat Valves

SVI control valves provide a quality, cost effective solution for most low pressure and hot water application where threaded connections up to 40mm are required.

The cast iron body and brass plug aresuitable for pressures up to 16bar and the 5,5mm stroke lengths gives good rangeability.

  • PN 16

  • DN 15-40

  • Internal thread connection

  • suitable for water and glycolic water

  • suitable for use with actuators types AMX and RLO



SVI





Datasheet


Terminal Valves

These valves provide a high quality, cost effetive solution for control of hot and/or chilled water for fan coil units, small re-heaters, and re-coolers in temperature control system.

They are used in combination with the EAO and EAV actuators.

Features

  • PN16

  • Small size allows installation where spae is limited

  • Soft sealing on plug gives complete shut-off

  • Linear flow characteristics

  • Linear bypass on 3 and 4 port valves

  • Suitable for water temperatures from +2...95C

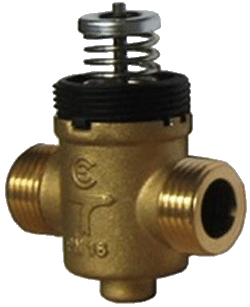

VZ2

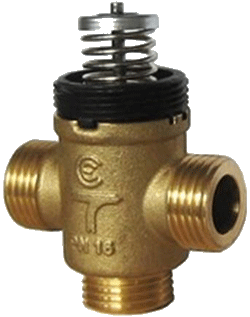

VZ3

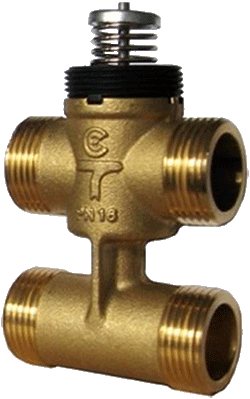

VZ4





Actuator

Zone valves





Datasheet (uk)

Datasheet
