ZONE CONTROLLER - LON



DESCRIPTION
The new ZFC-series of Zone and Fan Coil Controllers is specifically designed for zoning applications, such as reheat valve control and pressure dependent VAV, with or without local reheat.

The controllers feature a backlit LCD display with dedicated function menu keys for simple operation.

Accurate temperature control is achieved using a P+I control algorithm, which virtually eliminates the temperature offset associated with traditional, differential-based units.


Models are available for 3-point floating or 0-10Vdc outputs.

Provision for a remote room sensor (see AP TRD) is available and all versions contain an SPST auxiliary switch that can be used to control lighting or auxiliary reheat.

The controllers are available as stand-alone types or with Echelon or BACnet MS/TP network adapters.

FEATURES
Advanced occupancy functions
Three configurable inputs
Pre-configured sequences of operation
Unique configuration setup utility
Lockable keypad
Available for 24Vac floating or 0-10Vdc output
Auxiliary output

BENEFITS
One model meets more applications
Reduced project delivery cost
Tamperproof, no need for housing guards
Meets advanced applications requirements
Can be used for lighting or reheat


LonWorks

A NEW FLEXIBLE AND COST EFFECTIVE LONWORKS DDC SOLUTION INTELLIGENT BUILDING MANAGEMENT SOLUTIONS

In the evolving IBMS market, the scope of control system integrations is being rethought.

It is no longer an issue of device specific or protocol specific integrations. Integration must be provided at the information level and be fully supported locally.

Tomorrow's IBMS solutions require an integration framework that is flexible and powerful enough to support a broad range of solutions, but not overly technical in its implementation - it must be powerfully simple.

AP has an open software solution that leverages the power of mainstream technologies without the constraints of a proprietary design or implementation is in order.

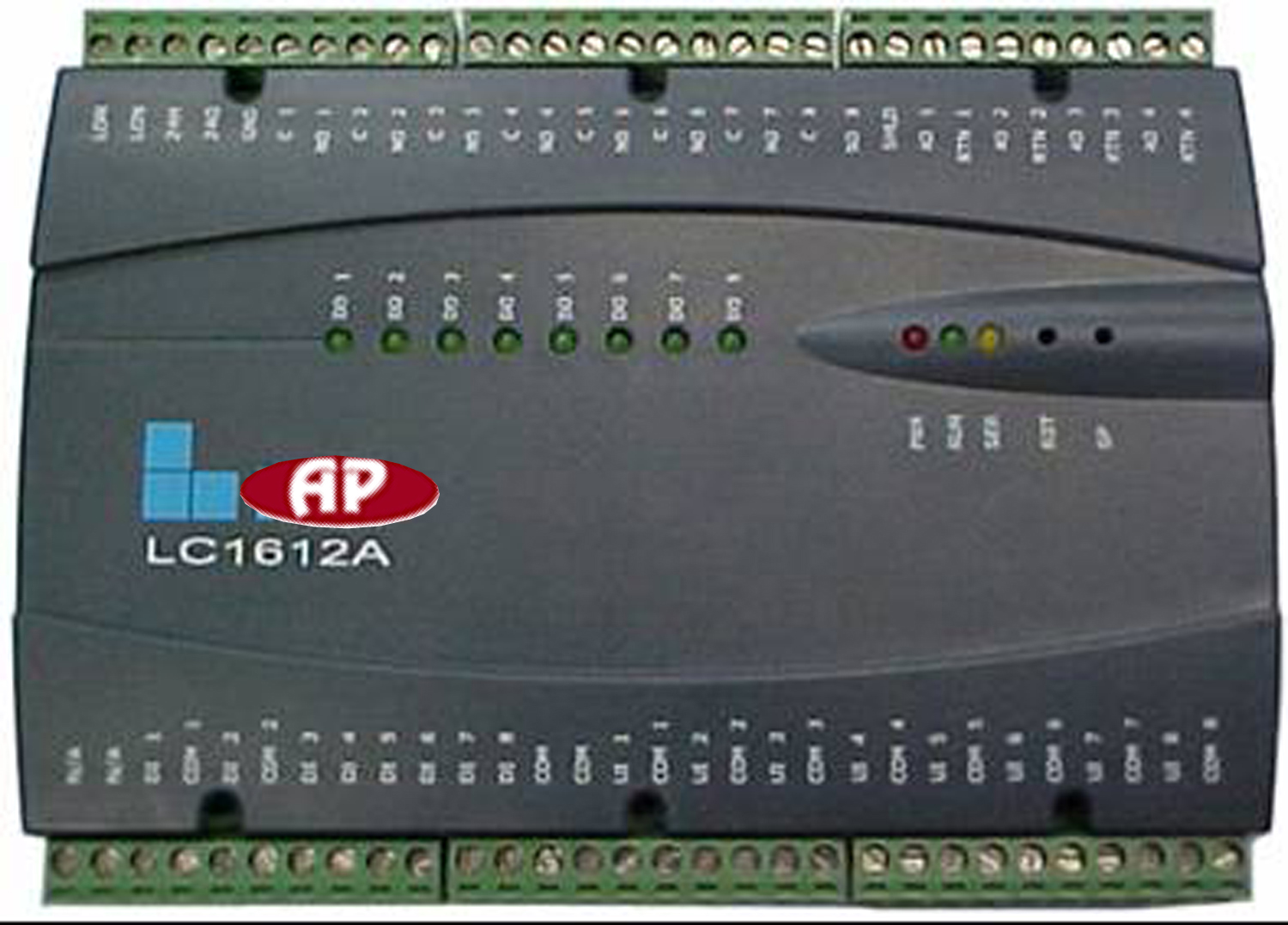

LC1612A











Datasheet

An ideal solution would includes a low/no cost and easy-to-use user interface (Web browser), provide for rapid application development (reusable software objects), and support ubiquitous network access (HTTP and TCP/IP).

Helping you save money is our business.

Whether you operate a commercial office building or campus, an industrial plant, a retail chain or mall, an educational or healthcare facility, AP gives you tools to directly impact your bottom line.

Very Flexible I/O Mix!

Eight Digital Inputs with detection closed switch @ <300? and opened switch @>100K including two dedicated 20 Hz DI's for Metering applications.

Eight Universal Inputs for Type 3 (10K) Thermistor, 0-20 mA current loop, 0 to 10 volt, or dry contact inputs.

Eight form C (SPST) relay outputs rated for 24VAC/DC @ 2 Amps resistive with one LED indicator for each relay.

Four channels of Analogue Outputs which can be 0-10Volts or 0-20mA

Features:

  • Freely Programmable LON Controller

  • Built-in real time clock

Applications:

  • Factory Automation

  • Intelligent Building Management Systems

  • Remote Building HVAC Control

  • Industrial Control And Remote Management

  • Hospital Information Access

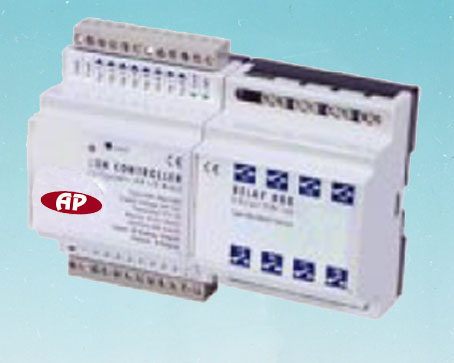

The MB2 range of control modules provide a convenient, lowcost solution to control applications.

Originally designed for building control applications, the MB2 features 8 inputs individually configurable to accept either digital or analog signals, plus a choice of analog and digital output options.




LON MB2





Datasheet

A 64kb programmable flash memory provides storage for application programs and configuration data and facilitates remote update. MB2 can be used alone or in conjunction with a matching relay box, which clips to the side of the controller unit to provide 4 or 8 relay outputs each rated at 10A 230V AC.

Connections between the controller and the relay box are made automatically when the relay box is clipped into place.

Features:

  • Flexible control module for Lonworks networks.

  • Individually configurable digital and analog inputs; 'Plug and play'
    relay box allows control of power switching applications.

  • Uses flash memory to facilitate application download via network.
