PROJECTING GUIDE - HOTEL

printer-friendly page







Room automation:

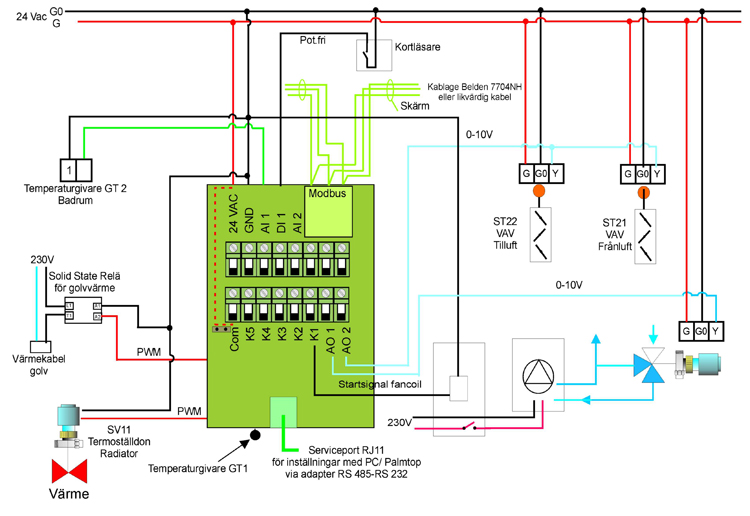

CONNECTIONS

Code

Article Type Remarks Date

RC 1

Zone Controller MPC 5G

2011-11-25

GT1

Temperature Sensor NTC built into RC1

GT2

Temperature Sensor Floor Sensor TFS NTC

ST21

Damper Actuator RM8M 0-10V

ST22

Damper Actuator RM8M 0-10V

SV11

Valve Actuator EAO 24 On-Off

Valve

2-way 15 mm FVB 215

Zone Control:

Cool-Heat in sequence with the VAV damper, fan coil and heated floors in bathrooms.

Function

Setting/Adjustnment via card reader in the room.

Temperature sensor GT1 regulates regulator RC1, valve SV11 for radiator heating, ST21 and ST22 for VAV control and fan coil in sequence.

At decreasing temperature, valve SV11 opens for radiator heating and ST 21 and ST 22 close to min. setting.

At increasing temperatures the opposite takes place. Temperature sensor GT2 regulates via controller RC 1 floor heating in bathrooms with solid-state relay to the set temperature.

Control of the radiator valve and floor heating via PWM signal, and VAV Actuator with 0-10V signal.

Setpoint has min. and max. value + /-3C at room temperature and max. electric heating in the bathroom.


Please see Zone Control, Standard
