CLASROOM PURIFIER |
|
|
|
|
|
The ACU classroom purifier does not only purify the
air but also helps you breathe better by removing unwanted (dust)
particles.
In classrooms and in diaper
changing rooms in kindergartens where unwanted odors occur, you get the best result from
this mounting position.

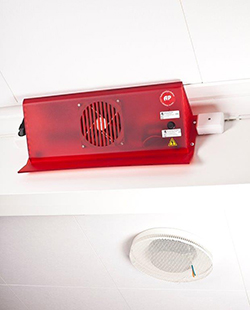

The ACU
classoom purifier can be mounted under the ceiling or on the wall horizontally or
vertically. It can also be mounted on a table.
|
 |
|
|
|
|
|
CE-decl. |
Reduction
of |
Press |
Air
purif. rod |
|
|
 |
|
|
|
|
|
|
air
contamin. |
Release |
Info sheet |
|
|
|
|
|
Particles are solid objects ranging from
millimeters in size to one millionth of a millimeter.
The size determines whether they are floating in
the air or if they fall to the floor.
A large amount of particles enters buildings from
the air outside. How many particles that enter depends on the building
ventilation system, if there are leaks and how the building is
ventilated.
Particles can also occur indoors. Tobacco smoke,
gas flames in stoves, burning candles, cooking, textiles, cleaning etc.
give rise to particles.
Some of the indoor particles are skin particles
from people living on the premises.
How you are affected by particles depends on the
amount, size and occurrence of harmful substances in or on the particle
surface. Indoor air should have as low levels of particles as possible. |
 |
|
|
|
|
 |
|
|
|
|
ACU classroom cleaner proves that air treated
with air purification technology improves the condition of students and
teachers suffering from
-
asthma
-
hay fever
-
allergies
-
depressionsr
-
fatigue
-
headache
Particles purified with classroom cleaners exist
in different sizes according to below:
-
nanoparticles, approx.
0.0001-0.05 μm, which for instance corresponds to larger gas
molecules, very small viruses or metal dust
-
ultrafine particles, about
0.05-0.1 μm, which include oil mist, large viruses, large metallic
dust, tobacco smoke
-
submicronic particles about
0.1-1 μm, such as bacteria and tobacco smoke
-
grova partiklar,
större än 1 µm, som t.ex. omfattar hushållsdamm, pollen och synlig
smuts
-
coarse particles, larger than 1
μm, such as household dust, pollen and visible dirt
Particles which are 40 μm or larger are visible
to the eye.
|
 |
|
|
|
|
Environm. |
|
|
|
|
|
|
|
|
|
|
|
declaration |
|
|
|
|
| |
Classroom, maximal room area/room volume in m2/m3 |
|
Model |
1 x ACU School |
2 x ACU School |
3 x ACU School |
|
Area |
100m2
/ 200m3 |
200m2
/ 400m3 |
300m2
/600m3 |
|
Noise level |
30 dB(A) |
30 dB(A) |
30 dB(A) |
|
Effect/Consumption |
24W |
24W |
24W |
|
Dimension |
545
x 210 x 145 mm |
|
|
|
|
The
dimensioning and calculation of airflow through the ACU is based on the
size, use and exposure of particles in a particular room, odors and
contaminants.
Automatikprodukter
offer free advice for correct
customization of the appropriate product. |
|
|
 |
|
|
|
ACU
is highly efficient against the very smallest particles and the
purifying effect is very significant and quick for particles less than
0.3um.
Researchers have found that this purification technique efficiently
removes small particles. (Lehtimäki) |
|
|
|
Other distinctive features of the classroom purifier
-
reduces 70% of pollutants within the first 10 minutes
-
very
sinificant reduction of bacteria
-
max
44dB sound level
-
significant reduction of odors and contaminants
-
provides optimal quality of indoor air
-
increases the level of concentration and productivity among students
and teachers
-
prevents airborne diseases (colds, fluids, etc.)
-
ensures good hygiene
|
|
|
| |
|
Air Quality Levels |
PM2.5 24h
Average concentration |
Effects on Health |
|
Level |
Air Type |
μg/m3 |
invisible |
|
I |
Very good |
0 - 35 |
Good air quality, almost no air pollution |
|
II |
Good |
36 - 75 |
Acceptable air quality, but some pollutants may
have a small effect on health on a handful of sensitive persons. |
|
III |
Light
pollution |
76 - 115 |
Vulnerable people will experience some degree of
discomfort. |
|
IV |
Medium pollution |
116 - 150 |
Vulnerable people will suffer a high degree of
discomfort. It may also affect otherwise healthy people's hearts,
lungs and respiratory systems. |
|
V |
Heavy
pollution |
151 - 250 |
Vulnerable people will
suffer even further from discomfort.
Many
people will suffer severe symptoms. |
|
VI |
Serious
pollution |
> 251 |
Healthy people will
suffer severe symptoms. |
|
|
|
|
| |
|
Air Quality Levels |
PM10 24h
Average concentration |
Effects on Health |
|
Level |
Air Type |
μg/m3 |
invisible |
|
I |
Very good |
0 - 50 |
Good air quality, almost no air pollution |
|
II |
Good |
51 - 150 |
Acceptable air quality, but some pollutants may
have a small effect on health on a handful of sensitive persons. |
|
III |
Light
pollution |
151 - 250 |
Vulnerable people will experience some degree of
discomfort. |
|
IV |
Medium pollution |
251 - 350 |
Vulnerable people will suffer a high degree of
discomfort. It may also affect otherwise healthy people's hearts,
lungs and respiratory systems. |
|
V |
Heavy
pollution |
351 - 4200 |
Vulnerable people will
suffer even further from discomfort.
Many
people will suffer severe symptoms. |
|
VI |
Serious
pollution |
> 421 |
Healthy people will
suffer severe symptoms. |
|
|
|
|
|
More
on particle monitors > |
|
|
