A NEW ERA IN SPACE TEMPERATURE SENSOR DESIGN
This range of innovative Space Sensors is designed to meet the exacting
standards of today’s architects, specifiers and building owners.
Its unique low profile, curved style allows it to
blend seamlessly in to the architecture of modern and older buildings
alike.
Matched to high quality sensors, multi-fit rear
fixing plate and soon to be released LCD display module, elevates this
sensor to the next level in room sensor design.
As with its predecessor the SAS range can be
supplied with a wide range of user interface options such as set-point
adjustment, fan speed and momentary switches etc. to give the customer
additional functionality.
SAS 142 is an
active temperature transmitter
0 - 10V/4-20mA. SAS is only equipped with passive sensors.
Automatikprodukter also offers a complete
range of customized user interfaces for every requirement.
SAS
SAS 142
LPT
FTT
Datasheet
Datasheet
Datasheet
Datasheet
SAS 142
LPT
FTT
CE-cert.
CE-cert.
CE-cert.
Features
Interface Options
Designed to be aesthetically pleasing
Blends into the fabric of any building
Developed using customer feedback and
involvement
Meets exacting standards of today’s
specifiers
SP Set temperature
to desired point
Setpoint
Interface Restriction
SP only
MS only
SP-MS only
SP-FSx only
FS 3/4/5 Fan Speed Switch
Select fan speed
MS
Momentary Switch
Override the programme
for a period of time
Overview of Space and Surface sensors
The Temperature Space and Surface Sensors
marks a significant breakthrough in HVAC control peripherials.
Space
Surface
The sensors are the only products of their type
on the market to integrate proven temperature measurement technology
with a strong aesthetic appeal.
The result is complete sensitivity to the requirements of both building
services engineering and commercial interior design.
Space
Surface
Designed to be wall- or surface-mounted in the space, the sensors
provide reliable and accurate temperature information to a building´s
HVAC control system.
But unlike traditional space and surface sensors, they can be supplied in
any required housing colour to create a perfect match with any room
environment.
Space
Surface
The Surface sensors can be installed in
combination to match light switches, plug outlets or other suface
devices of Busch-Jaeger, Berker, Feller, Gira, Legrand, Merten, Niko or
Jung.
The sensors also available in an extensive choice
of user interface options and provide wide compatibility with all major
BEMS systems.
This ensures that Space and Surface sensors represent an excellent fit
for a diversity of engineering specifications.
Space
Surface
AP - your highly versatile and incredibly discreet temperature sensing
solution.
Blend with any interior environment.
The sensors have capability to be virtually invisible to the naked eye.
Simply tell us your choice of housing colour and we will do the rest.
Space
Surface
More choice .... better sense
Reowned for the accuracy and reliability of their sensors, AP have
introduced added benefits to the Space and Surface range with an
unrivalled
choice of application-specific, user inteface options.
Incorporate either high quality thermistor, or Nickel or Platinum
sensing
element for good thermal response.
3 -and 4-wire as option
Suitable for use within the temperature range
-30 to +90° C if space and -30 to +60° C for surface
Wide range of user adjustments options
including stoppers for the setpoint
Potentiometer for local setpoint adjustment (different ohms of the
knob
available)
3,4 or 5 position switch for fan control (0,
Auto, I, II, III), max 130 mA
Standard green, optional red, yellow or two
colour LEDs 24Vdc for occupancy status indication or alarms
Latching Pushbutton Normally-open contact
24V, max 35 mA
LCD Readout of Local Temperature
Pushbutton for Occupancy Override
Active transmitters 0-10Vdc, 0 . . . +50° C as
standard, others range on request e.g.
-50 . . . +50° C
Power Supply 24Vdc for the Active Transmitters
and the Display
Stainless steel enclosure optional
Surface enclosure Busch-Jaeger Rettex Si
as standard (other
switch brands, colours on request)
Surface standard colour alpine white (similar
RAL9010).
Special printing of letters, number scales on
request
Space
Surface
AP sensors are CE compliant and meet the requirements of the latest
relevant European standards.
AP markets a fully comprehensive range of control and enviromental
products for building control applications.
Space
Surface
Surface SLP: Setpoint, Pushbutton and 2 LED:s
Temperature Output: Pt100, Pt1000, Ni1000,
LgNi, NTC, HON, PTC, TAC and Saia-Bus
Setpoint Output: 1000ohm, 100ohm, 2,5kohm, 5kohm and 10kohm
Setpoint Output: 1000ohm, 100ohm, 2,5kohm, 5kohm and 10kohm
Surface LSP Setpoint, LED and Pushbutton
Temperature Output: Pt100, Pt1000, Ni1000,
LgNi, NTC, HON,TAC, PTC and
Saia-Bus
Setpoint Output: 1000ohm, 100ohm, 2,5kohm, 5kohm and 10kohm
Surface STR Setpoint LED and Rocker switch
Temperature Output: Pt100, Pt1000, Ni1000,
LgNi, NTC, HON,TAC PTC and Saia-Bus
Setpoint Output: 1000ohm, 100ohm, 2,5kohm, 5kohm and 10kohm
Surface SPF Setpoint
Temperature Output: Pt100, Pt1000, Ni1000,
LgNi, NTC, HON, TAC,PTC and Saia-Bus
Setpoint Output: 1000ohm, 100ohm, 2,5kohm, 5kohm and 10kohm
Surface LS2 LED and Turn switch 2 step
Temperature Output: Pt100, Pt1000, Ni1000,
LgNi, NTC, HON, TAC, PTC and
Saia-Bus
Surface SLB LED and Pushbutton
Temperature Output: Pt100, Pt1000, Ni1000,
LgNi, NTC, HON, PTC, TAC and Saia-Bus
Surface SUF
The SUF Sensors are used to provide reiable,
accurate temperature readings in surface-mount room environments.
The room sensors feature a ventilated deluxe executive enclosure design.
The sensors are designed for interior use only in the temperature range
-30° C to +60° C.
Temperature Output: Pt100, Pt1000, Ni1000,
LgNi, NTC, HON, PTC, TAC, 0-10Vdc and
Saia-Bus

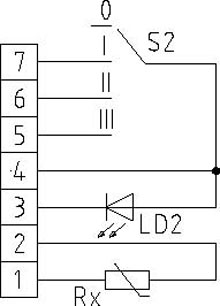

Surface LS4 LED,Turn switch 4-step
Temperature Output: Pt100, Pt1000, Ni1000, LgNi,
NTC, HON, TAC, PTC, and
Saia-Bus
Space: TRF Display
Temperature Output: Pt100, Pt1000, Ni1000,
LgNi, NTC, HON, PTC, TAC and Saia-Bus
Display
Version: 0 to +50C
Space, TRF/SS Stainless Steel
Temperature Output: Pt100, Pt1000, Ni1000,
LgNi, NTC, HON, PTC, TAC and Saia-Bus
Space: TRF
The TRF is a Room Temperature Sensor with an accuracy from +/-0,3C
(standard).
The thermistor is made of very stable, pre-aged material that offers
reliability needed in control systems.
The platina comes in 100ohm or 1000ohm and is compatible with most HVAC
systems.
Temperature Output: Pt100, Pt1000, Ni1000,
LgNi, NTC, HON, PTC, TAC and
Saia-Bus
Space TRF/CP (Passive) Setpoint, Swelling arrow, central position
The TRF/CP is a wall-mounted Temperature Sensor
in a low-profile enclosure designed for good thermal response.
It has several temperature options including a knob providing a varying
resistance (e.g. setpoint trim)
Temperature Output: Pt100, Pt1000, Ni1000,
LgNi, NTC, HON, PTC, TAC and Saia-Bus
Setpoint Output: 1000ohm, 100ohm, 2,5kohm, 5kohm and 10kohm
Display Version: Direct Output Temperature 0 to +50° C
Space TRF/Custom
The TRF/Custom is designed to be wall mounted
indoors where appearance and accuracy are important.
The sensor may be mounted directly to the drywall or standard electrical
boxes.
It comes in all the most common thermistors or RTDs.
Options may be mixed and matched for each application.
Comfort temperature measurement can
be best achieved by taking into account
the radiant effect of surfaces within the
controlled space. The comfort temperature is specified as
the average of the conductive temperature
and the radiant temperature.
The CTT universal temperature transmitter
combines four preset range selectable modes and customised output
range scaling.
The CTT/CTF is a Black Bulb Temperature Sensor
used to measure radiant heat in indoor spaces.
Units contain either a high quality
thermistor or Platinum element.
PT100A accuracy of URT active transmitter CTT.
CTF
CTS
CTT
CTF
CTS
FTT
Datasheet
Datasheet
Datasheet
Datasheet
FTT
CTT
LPT
LPT
CE-cert.
CE-cert.
CE-cert.
Datasheet
Comfort Pendulum
The Temperature Sensor CPF , particularly for temperature detection in
larger roms and halls.
CPF, the black globe globe temperature sensor, determines the effective
portion of active radiation or also the effective radiant heat at the
measured location.
Due to the measuring method applied by the pendelum room temperature
sensor in combination with its positioning in the room, excellent and
room-reprensentative measuring results are achieved.
Housing in IP65
Pendulum
The Temperature Sensor PRF , particularly for temperature detection in
larger roms and halls.
Due to the measuring method applied by the pendelum room temperature
sensor in combination with its positioning in the room, excellent and
room-reprensentative measuring results are achieved.
Duct
The TDS/UDT are direct output, passive (TDS) or active
(UDT) temperature sensors with 0-10Vdc/4-20mA output, used to measure air
temperature in ducts.
The UDT 142 universal temperature transmitter combines four preset range
selectable modes and customised output range scaling.
The sensing element is fitted into a 150mm
long brass probe with holes to allow air to flow directly over the
sensing element.
A flange plate is available for adjustment of penetration depth.
UDT has the PT100A accuracy of sensing element.
TDS
UDT
LPT
FTT
Datasheet
Datasheet
Datasheet
Datasheet
UDT
LPT
FTT
CE-cert.
CE-cert.
CE-decl.
Duct IP65 for environment of dust and water Industry standard polyamide enclosure for all industrial and
commercial duct temperature sensing applications.
Corrosion free 30% glassfilled polycarbonate enclosure design to
withstand temperature exttremes, mechanical shock and vibration.
Stainless steel crimp attached to the enclosure
flange for a low profile mating surface, extrenal adjustable mounting
bracket to conform irreglar surfaces, quick-locking screws atachment,
cradle moulded into the enclosure to secure the rising cage terminal
block are some of the features which improve reliability and lower
installation cost.
The TDF temperature sensors
provide a cost effective and reliable solution for air handlers, fancoil
units, plenums, furnaces or any other application which does not require
conduit wiring.
PT100B accuracy of TDF 010/420 for
measuring.
TDF
TDF 010/420
w. display
TDF
TDF 010
TDF 420
Datasheet
Datasheet
Datasheet
Average IP65 The TAF is designed for direct mounting to sheet metal for average
duct
temperature sensing.
The sensor is multipoint sensitive through the length of the temperature
conductive tubing.
The sensor modules are environmentally sealed in rod material, copper,
corrosion free plastic-coated with spring for buckling protection.
Installation by mounting clips of brass.
Available in standard length 0,4, 3 or 6 metre (rated lengths up to max
20m optional).
The elements are configured in a series/
parallel method, which creates an end result of total average resistance,
equal to the same span as a standard sensing element, with temperature
range of -30/+80° C for the passive output TAF.
Active output 0-10Vdc or 4-20mA (loop-powered) available with or without LCD display
readout of local temperature
The TAF provides a reliable solution for measuring average supply air
temperature in larges ducts and plenums.
The TAF is an ideal product for high air flow systems.
TAF
TAF 010
Datasheet
Datasheet
Average
These direct output, Temperature Sensors TAS and UAT are used for
measuring temperature in ducts where an average reading across the air
flow is required.
Units contain either high quality thermistor, nickel or platinum sensing
elements which are housed in an 8mm diameter 'Nylon 12' tube, spaced at
0.5m intervals along the standard 2.2m length.
Selectable outputs 0-10Vdc or 4-20mA of Active Duct Avering Transmitter
UAT.
TAS
Datasheet
The UAT universal temperature transmitter combines four preset range
selectable modes and customised output range scaling of PT100A accuracy.
The sensors are housed in IP65 rated enclosures.
5 metres of probe length is available

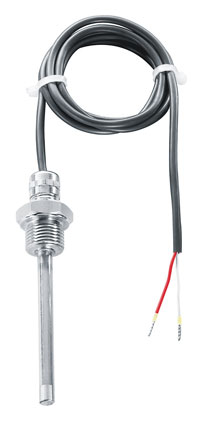

Immersion Screw-In
The IST Immersion Temperature Sensor incorporate a hermetically sealed
stainless steel probe for installation in piping, tanks and vessels.
The temperature measuring point is completely integrated into the
screw-in sensor and can be easily installed in piping.
The IST sensor provide a reliable solution for hot/chilled water,
condenser water or pressure steam applications up to 40bar.
The protection class is IP65 and can be supplied as IP68
Immersion
These Immersion Sensors TIS and UIT are used for
measuring the temperature of liquids in pipework.
TIS contain either a high quality thermistor, nickel or platinum
element.
The sensing element is housed in a 150mm long brass probe fitted to an
IP65 rated enclosure, for direct mounting into a BRP brass or SSP
stainless steel pocket.
Headmounted electronics provide selectable outputs 0-10Vdc or 4-20mA of
Active Immersion Transmitter UIT.
The UIT universal temperature transmitter combines four preset range
selectable modes and customised output range scaling of PT100A accuracy.
The UIT has PT100A accuracy temperature sensor for accurate measurement
of liquid temperatures.
Immersion IP65 for environment of dust and
water
The ITF Immersion Temperature Sensor enclosure is
corrision free 30% glass filled polycarbonate designed to withstand
temperature extremes, mechanical shock and vibration.
Stainless steel crimp attacvhed to the enclosure for a low profile
mating surface.
The locking brass or stainless steel pocket is included, single screw
cover attachment, cradle molded into the enclosure to secure the rising
cage terminal block are som of the features which improve reliability
and lower
cost installation.
The ITF sensors provide a cost effective and reliable solution for hot/chilled
water, condenser water or low pressure steam applications.
Necktube IP65 Neck Immersion Temperature Sensor NTF with passive and active output.
Screw-in temperature sensor with enclosure made of impact-resistant
plastic, neck tube and separate immersion sleeve.
It is used for the detection of temperature in liquid or gaseous media.
Applications in:
piping systems
district heating
storage tanks
the entire industrial sector
hot and cold water system
oil and lubricant circulations
Immersion Sleeve The ISF immersion transmitter is used for temperature detection in
liquid and gaseous media e.g. by installing it an immersion pocket.
The ISF provide precision remote temperature sensing for building
automation systems and mechanical room instrumentation.
The active sensing element is a highly stable precision thermistor or
platinum RTD.
The sensing element is sealed with a temperature conductive compound in
a
stainless steel probe and can be used where it is possible for the
sensed temperature below the ambient dew point, causing condensation to
occur the sensor.

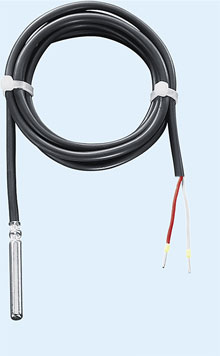

Immersion Cable The ICF immersion sensor is used for temperature detection in liquid
and gaseous media e.g. by installing it an immersion pocket.
The ICF provide precision remote temperature sensing for building
automation systems and mechanical room instrumentation.
The active sensing element is a highly stable precision thermistor or
platinum RTD.
The sensing element is sealed with a temperature conductive compound in
a stainless steel probe and can be used where it is possible for the
sensed temperature below the ambient dew point, causing condensation to
occur the sensor.
Is available in waterproof probe with protection class IP68 as option.
The all-purpose probe is suitable for plenum mounting, duct mounting,
immersion pockets or outside air.
Available with cable for high temperature up to +250 degree.
Pocket
The BRP Brass Pocket and SSP Stainless Steel pockets are for use to
protect probes of sensors with different type of media and operating
pressures.
Arr use for with immersion sensors to measure the temperature of
liquids in
pipes and vessels.
To facilitate quick mounting and removal of sensors.
Pockets are designed to accept 150x6mmm dia probes, which are locked
in position by a grub screw.
Pockets can be installed in any system that is constructed from
compatible materials whose operating pressures are within the
specified ranges and fit into a 1/2 inch boss using a thread-seal
compound.
Datasheet
Strap-On
The TSS and UST are used to measure pipe temperature, and contain either
a high quality thermistor, nickel or platinum element, which is housed
in a 50mm long brass probe with 2 meters of PTFE 2-core screened cable
as
standard connecting the probe to an IP65 housing for termination.
Headmounted electronics provide selectable outputs 0-10Vdc or 4-20mA of
Active Strap-On Transmitter UST
The UST universal temperature transmitter combines four preset range
selectable modes and customised output range scaling of PT100A accuracy.
The UST has PT100A accuracy temperature sensor for accurate measurement
of surface temperatures.
Suitable for use in exposed locations.
Datasheet
Outdoor
These TOS, direct output, Temperature Sensors are for measuring outside
air temperature.
Units contain either a high quality thermistor, Nickel or Platinum
sensing element.
TOS
TOS Outdoor Sensor
TOS
Datasheet
Selectable outputs 0-10Vdc or 4-20mA of Avtive Outdoor Transmitter UOT
The UOT unniversal temperature transmitter combines four preset range
selectable modes and customised output range scaling of PT100A accuracy.
The sensors are housed in IP65 rated enclosures.
The TOS and UOT has a 10mm diameter brass cap containing the sensing
element located externally in the shadow of the lid to curb the effects
of solar gain, but should always be situated in a sheltered position on
a north
facing wall.
Outdoor IP65 for environment of dust and water (Passive)
The OTF and OTFS weather or wet room temperature sensor with enclosure
made of impact-resistant plastic for detection of outside temperature,
temperatures in wet room areas, in cold storage buildings and
green-houses, in halls, in the industrial sector and in agriculture.
Installation in outdoor areas preferably at the north side of a building
or in a protected place.
In case of direct solar radiation, the sundshade protection HSG should
be used.
The outdoor air temperature assembly should be located in the shade,
away from all devices (such as an exhaust fan) that would disturb the
normal outdoor environment.
A prefered location would be below the eaves, 25 cm down from the top of
a wall, in permanently shaded spot.
The transmitter OTF 420 is connected over a
2-wire cable, which serves
both as power supply and signal transmission.
The active sensing element is a highly stable PT100B of accuracy is used
for output signal
0-10Vdc or 4-20mA.
The OTF and OTFS is available with display for temperature indication.
OTF
OTF
Display
OTFS
OTFS Display
Outdoor Sunshield
These TOSR, direct output, Temperature Sensors
are for measuring outside air
temperature.
Units contain either a high quality thermistor, Nickel or Platinum
sensing element.
Selectable outputs 0-10Vdc or 4-20mA of Avtive Outdoor Transmitter UOTR
The UOTR unniversal temperature transmitter combines four preset range
selectable modes and customised output range scaling of PT100A accuracy.
The sensors are housed in IP65 rated enclosures.
The TOSR and UOTR has the element fitted into a PTFE radiation shield,
designed to provide fast response times to changes in outside air
temperature and to protect the element from the effects of direct
sunlight
