TEMPERATURE - DE LUXE, DUCT

Duct

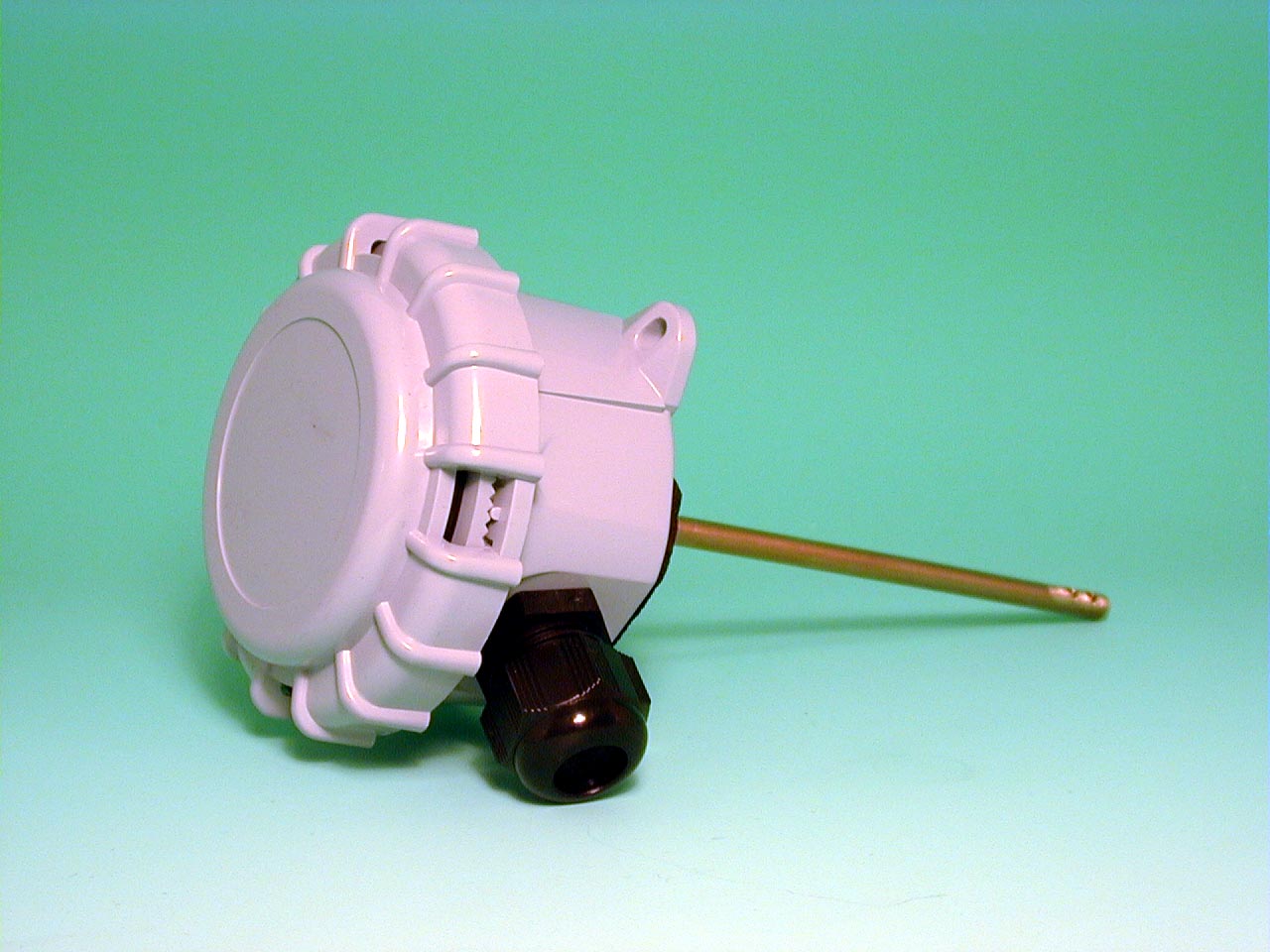

The TDS/UDT are direct output, passive (TDS) or active (UDT) temperature sensors with 0-10Vdc/4-20mA output, used to measure air temperature in ducts.

The UDT 142 universal temperature transmitter combines four preset range selectable modes and customised output range scaling.

The sensing element is fitted into a 150mm long brass probe with holes to allow air to flow directly over the sensing element.

A flange plate is available for adjustment of penetration depth.

UDT has the PT100A accuracy of sensing element.




TDS UDT LPT FTT

Datasheet

Datasheet

Datasheet

Datasheet






  UDT LPT FTT

  CE-cert. CE-cert. CE-decl.




Duct IP65 for environment of dust and water
Industry standard polyamide enclosure for all industrial and commercial duct temperature sensing applications.

Corrosion free 30% gas filled polycarbonate enclosure design to withstand temperature extremes, mechanical shock and vibration.

Stainless steel crimp attached to the enclosure flange for a low profile mating surface, external adjustable mounting bracket to conform irreglar surfaces, quick-locking screws attachment, cradle moulded into the enclosure to secure the rising cage terminal block are some of the features which improve reliability and lower installation cost.

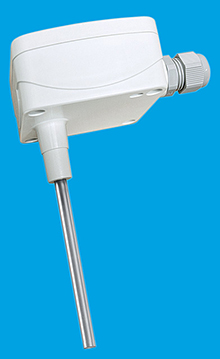

The TDFN temperature sensors provide a cost effective and reliable solution for air handlers, fancoil units, plenums, furnaces or any other applications which do not require conduit wiring.


TDFN




Mounting flange





TDF

TDF 010

TDF 420





Datasheet

Datasheet

Datasheet
